EC400201 Hollow Shaft Encoder

EC400201 Hollow Shaft Encoder

  • Series:EC系列
  • Format:See the following profile
  • Specifications

    Encoder model:

    EC400201 series

    Applications:

    Automotive electronics, audio products, household appliances and other related electronic devices;


    Product Features:

    Smooth rotational feel and highly reliable  performance;

    Hollow encoder to enable flexible design in the center ring.

    Functions:

    It mainly plays the role of adjusting volume, adjusting temperature, frequency modulation, function switching, etc.

    Main Specifications:

    Dimensions: φ40mm

    Rated voltage: DC 5V

    Number of detent: 14

    Pulses: 14

    Rotational torque: 450±150gf.cm

    Rotational angle: 360°

    Working temperature: -40℃~85℃

    Rotational life: 30,000 cycles Min

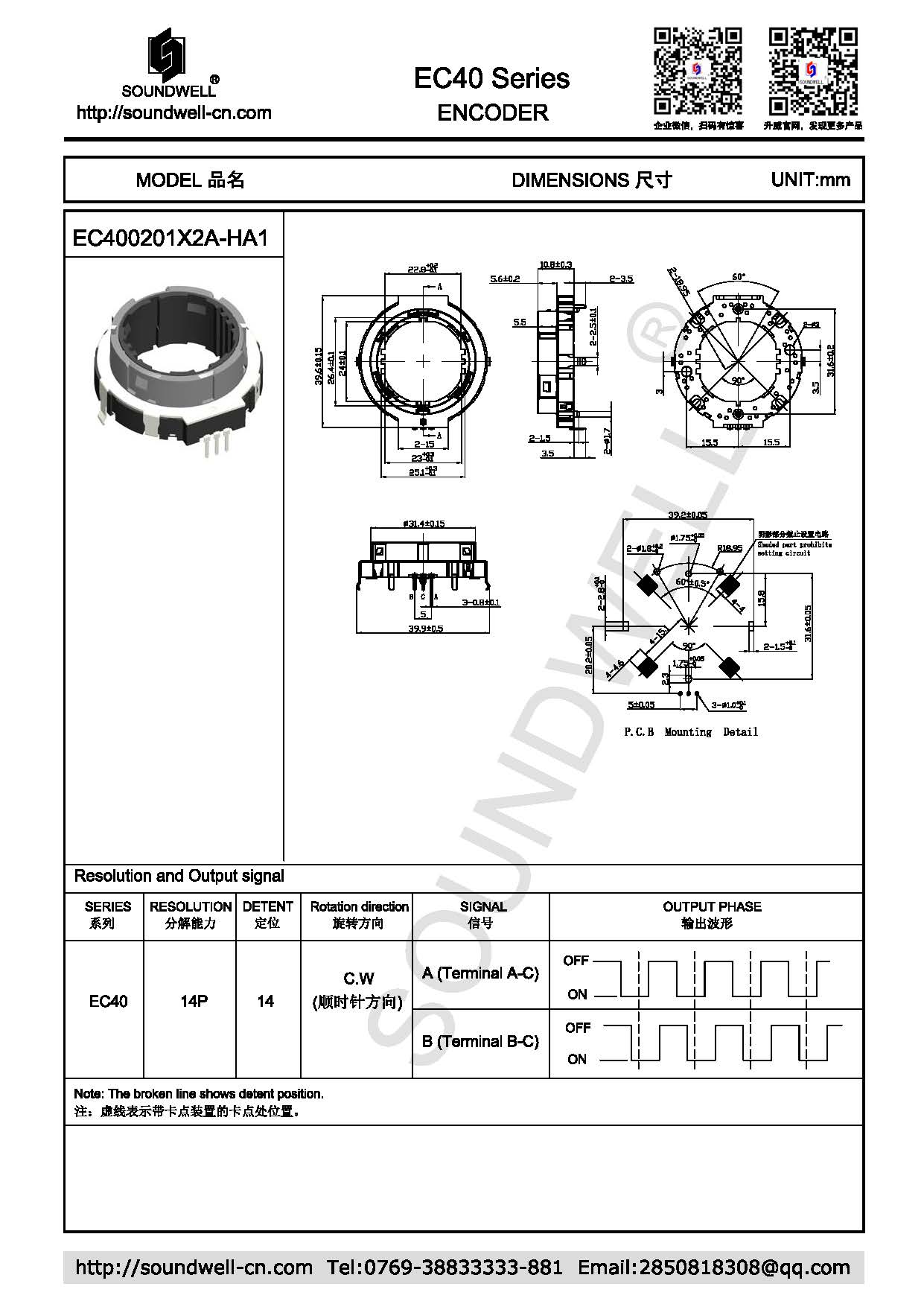

    EC400201 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational torque: 450±150gf.cm

    2. Number of detent: 14 (Step angle: 25.71°±3°)

    3. Shaft Wobble: 0.2 mm Max

    4. Shaft play : 2° MAX

    TWO、ELECTRICAL CHARACTERISTIC
    1. Resolution: 14 pulses/360°

    2. Phase difference: ≥5 ms

    3. Rated voltage: DC 5V

    4. Insulation resistance: 100M? 1 Minute at  DC 250V

    5. Dielectric voltage: 1 Minute at AC 300V

    THREE、ENDURANCE CHARACTERISTIC

    1. Rotational life : 30,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
